Specification for Topward 8110 Function Generator

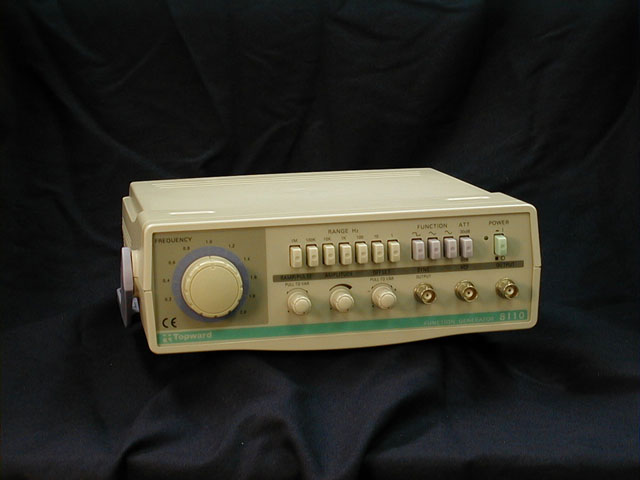

Topward Function Generator 8110Click here for larger image.

Waveforms Sine, square, triangle, ramp, pulse
Amplitude 20Vp-p, Open [Output protected up to 30V (DC+AC)]
Output Impedance 50W ± 10% for main and sync
DC Offset +10V ~ -10V
Duty Control 20:80 (frequency unchanged) continuously variable with 50:50 calibrated switch
V.C.F. 0 to +5V control frequency to 1000:1
Frequency Range 0.1Hz to 2MHz in 7 ranges
Frequency Accuracy ± 5% of full scale
Distortion < 1%, 10Hz ~ 100KHz
Rise/Fall Time < 100nS
Rise Time for Sync Output < 20nS
Sync Output Level < 20nS
Power Requirement 115/230 Vac; 50/60Hz single phase
Accessories Supplied Power cord, hook-up leads, intruction manual
Dimension 10.2"(W) x 3.3"(H) x 10.1"(D)
Weight 3.5 Pounds
