Specification for Topward 1330 Digital Multimeter

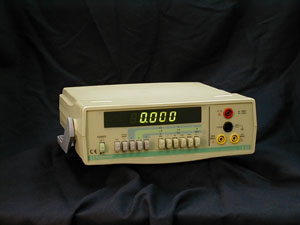

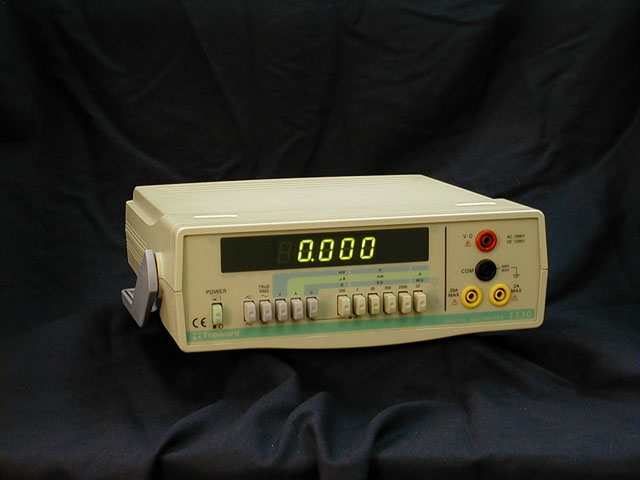

Topward Digital Multimeter 1330Click here for larger image.

DC VOLTAGE MEASUREMENT
Range ± 199.99mV, ± 1.9999V, ± 19.999V, ± 199.99V, ± 1200V, 5 Ranges
Accuracy ± (0.03% + 4d)
Input Impedance 10MW
AC VOLTAGE MEASUREMENT (AC or AC + DC TrueRMS)
Range ± 199.99mV, ± 1.9999V, ± 19.999V, ± 199.99V, ± 1000V, 5 Ranges
Accuracy 199.99mV ~ 199.99V 4 Ranges 45Hz~ 2KHz ± (0.5%+15d),

2KHz~ 10KHz ± (1%+15d), 10KHz~ 20KHz ± (2%+15d),

20KHz~ 50KHz~ 50KHz ± (5%+30d), 1000V Range

45Hz-1KHz ± (0.5%+15d)

Input Impedance 10MW // 100pF
DC CURRENT MEASUREMENT
Range ± 199.99mA, ± 1.9999mA, ± 19.999mA, ± 199.99mA, ± 1999.9mA,

± 19.999A, 6 Ranges

Accuracy 199.99mA ~ 199.99mA 4 Ranges ± (0.2%+1d),

1999.9mA ~ 19.999A 2 Ranges ± (0.3%+1d),

Protection 2A 250V DC or RMS [Fuse Protected] for 199.99mA ~ 1999.9mA
AC CURRENT MEASUREMENT (AC or AC+DC TrueRMS)
Range 199.99mA, 1.9999mA, 19.999mA, 199.99mA, 1999.9mA,

19.999A, 6 Ranges

Accuracy 199.99mV ~ 199.99mA 4 Ranges 45Hz~ 2KHz ± (0.5%+15d),

2KHz~ 10KHz ± (1%+15d), 10KHz~ 20KHz ± (2%+15d),

1999.9mA ~ 19.999A 2 Range 45Hz~ 2KHz ± (0.5%+15d)

Protection 2A 250V DC or RMS [Fuse Protected] for 199.99m A ~ 1999.9mA
OHM MEASUREMENT
Range 199.99W , 1.9999k, 1.999.9kW , 19.999KW

199.99KW , 1.9999MW , 19.999MW , 6 Ranges

Accuracy 199.99W range ± (0.1% +4d)

1.9999KW ~ 1.9999MW 4 Ranges ± (0.1% +2d)

19.999MW Range ± (0.25% +2d)

DIODE TEST YES
GENERAL
Display 0.5", 4 ½ Digits Green LED Display
Power Source ACV 115V/230V, ± 10%, 60Hz/50Hz
Dimension 10.3"(W) x 3.3"(H) x 10.2"(D)
Gross Weight 3.3 lbs
Accessories ACS-0.18 x 1, Operation Manual x 1
