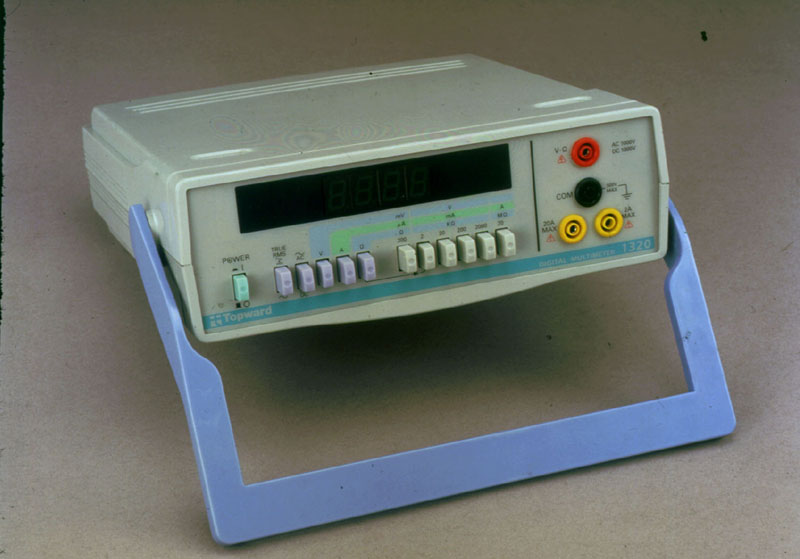

 Click here for larger image.

Specification for Topward 1320 Digital Multimeter
DC VOLTAGE MEASUREMENT
Range ± 199.9mV, ± 1.999V, ± 19.99V, ± 199.9V, ± 1200V, 5 Ranges
Accuracy ± (0.1% + 1d)
Input Impedance 10MW
AC VOLTAGE MEASUREMENT (AC or AC + DC TrueRMS)
Range ± 199.9mV, ± 1.999V, ± 19.99V, ± 199.9V, ± 1000V, 5 Ranges
Accuracy 199.9mV ~ 199.9V 4 Ranges 45Hz~ 2KHz ± (0.5%+1d),

2KHz~ 10KHz ± (1%+1d), 10KHz~ 20KHz ± (2%+1d),

20KHz~ 50KHz~ 50KHz ± (5%+2d), 1000V Range 45Hz-1KHz ± (0.5%+2d)

Input Impedance 10MW // 100pF
DC CURRENT MEASUREMENT
Range ± 199.9mA, ± 1.999mA, ± 19.99mA, ± 199.9mA, ± 1999mA,

± 19.99A, 6 Ranges

Accuracy 199.9mA ~ 199.9mA 4 Ranges ± (0.2%+1d),

1999mA ~ 19.99A 2 Ranges ± (0.3%+1d),

Protection 2A 250V DC or RMS [Fuse Protected] for 199.9m A ~ 1999mA
AC CURRENT MEASUREMENT (AC or AC+DC TrueRMS)
Range 199.9mA, 1.999mA, 19.99mA, 199.9mA, 1999mA, 19.99A, 6 Ranges
Accuracy 199.9mV ~ 199.9mA 4 Ranges 45Hz~ 2KHz ± (0.5%+1d),

2KHz~ 10KHz ± (1%+1d), 10KHz~ 20KHz ± (2%+1d),

1999mA ~ 19.99A 2 Range 45Hz~ 2KHz ± (0.5%+1d)

Protection 2A 250V DC or RMS [Fuse Protected] for 199.9mA ~ 1999mA
OHM MEASUREMENT
Range 199.9W , 1.999k, 1.999kW , 19.99KW

199.9KW , 1.999MW , 19.99MW , 6 Ranges

Accuracy 199.9W range ± (0.1% +1d)

1.999KW ~ 1.999MW 4 Ranges ± (0.1% +1d)

19.99MW Range ± (0.25% +2d)

DIODE TEST YES
GENERAL
Display 0.5", 3 ½ Digits Green LED Display
Power Source ACV 115V/230V, ± 10%, 60Hz/50Hz
Dimension 10.3"(W) x 3.3"(H) x 10.2"(D)
Gross Weight 3.3 lbs
Accessories ACS-0.18 x 1, Operation Manual x 1
